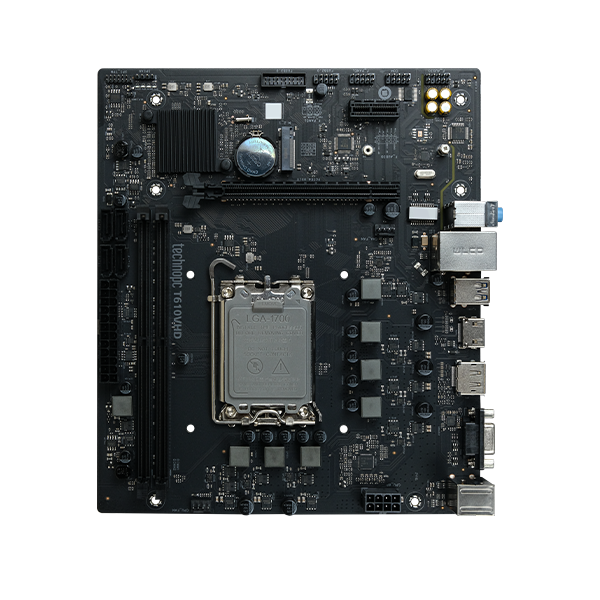

Anakart Intel 1700P-Technopc T610VHD H610 2xDDR4 HDMI+VGA+DP 1x1X 1x16X 1xM.2 mATX Kutulu Box 2xUSB3.2 Gen1 5G+4xUSB2.0 1xCom Header (052906)

H610M-W D4 Interface

Supports 12/13/14th Gen Intel® Core™ Processors (LGA1700)

4 x SATA3 6.0 Gb/s Connectors

1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

Realtek ALC897 7.1 CH HD Audio Code

Support 2/4/5.1 Channels

Realtek RTL8111H  (1 Gbps/100 Mbps Network chips)

Gigabit LAN 1 Gbps/100 Mbps

1 x PS/2 Mouse/Keyboard Port，(TWO IN ONE)

USB Port (2 x USB3.2 Gen 1,4 x USB2.0)

1 x VGA Port  , 1 x HDMI Port , 1 x DP Port

1 x RJ45（Gigabit LAN 1 Gbps/100 Mbps）

HD Audio Jacks (Line in,Front Speaker,Microphone)

1 x F_Panel Header

1 x COM Port Header

1 x Front Panel Audio Connector Header

1 x Speaker Header（Only Buzzer)

1 x CPU Fan Connector (4-pin) Header

1 x SYS Fan Connector (4-pin) Header

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

1 x USB 2.0 Headers (Support 2 USB 2.0 ports)(Supports ESD Protection)

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x SPI_TPM Port Header (2x7PIN)
